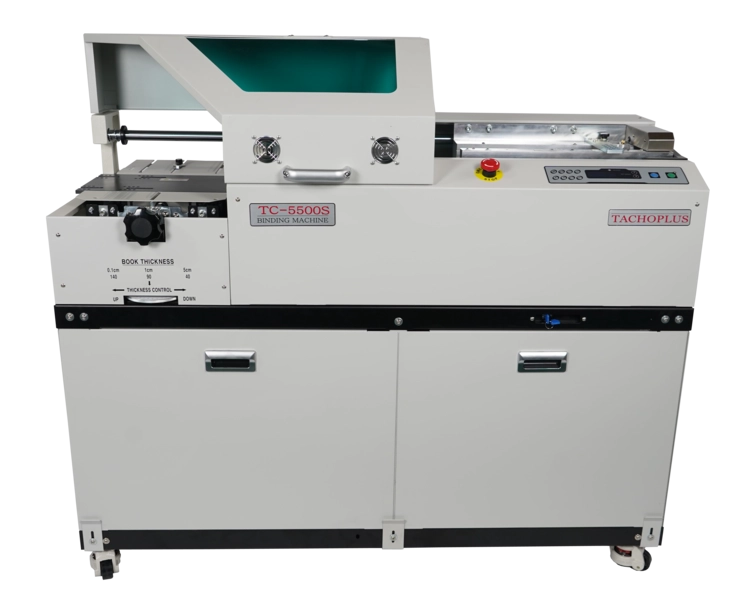

PRODUCT : TC-5500S (OPERATION VIDEO)
| TC-5500S | TC-5500SM | TC-5500SMS | |
| Book block size | 320x220mm | 320x220mm | 320x220mm |
| Cover size | 330x480mm | 330x480mm | 330x480mm |
| Book thickness | 2~50(70)mm | 2~50mm | 2~50mm |
| Binding speed | 300cycle/hr | 300cycle/hr | 300cycle/hr |
| Cutting | Scraping | Milling+Scraping | Milling+Scraping |
| Side glue | O | O | O |
| Warm-up time | 50-60min | 50-60min | 50-60min |
| Display | LCD | LCD | LCD |
| Power consumption | 2.8Kw | 3.6Kw | 4.3Kw |
| Voltage / frequency | AC220-240V / 50-60Hz | AC220-240V / 50-60Hz | AC220-240V / 50-60Hz |
| Machine dimension | 1440(L)x510(W)x1070(H)mm | 1440(L)x510(W)x1070(H)mm | 1440(L)x510(W)x1070(H)mm |
| Machine weight | 350KG | 360KG | 370KG |
| Option | X | Fan | Fan+Inverter |
Everyone can easily finish binding, office binding machine
You can bind with one button.
You can easily insert the document into the document guide
and operate the button at the same time.

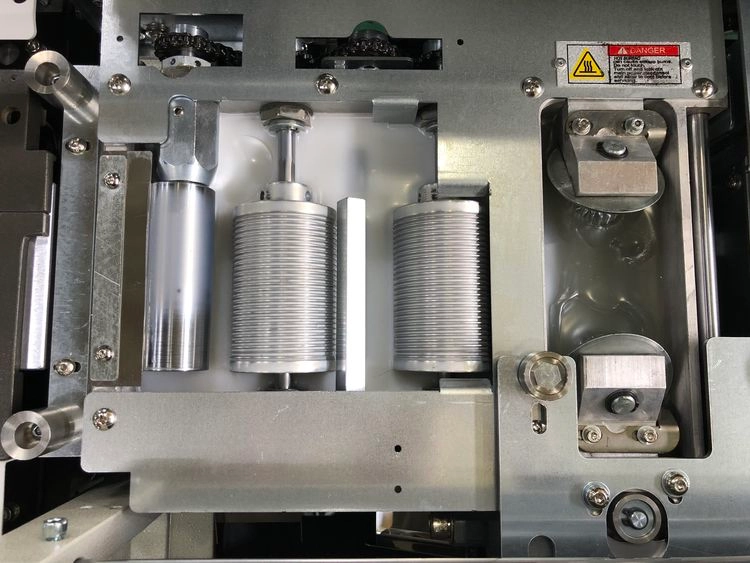

Book Main Glue & Side Glue
The main bookstore roller and the side gluing device are separated.
Use different kinds of glue to complete the binding
with excellent quality.

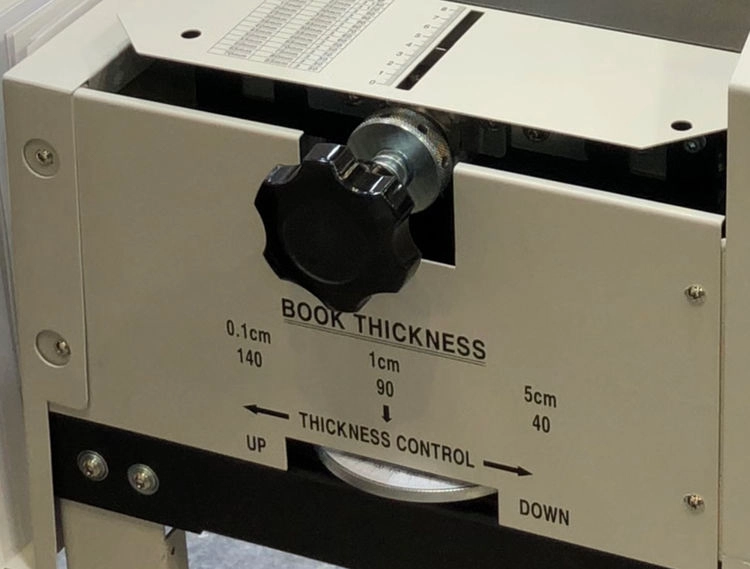

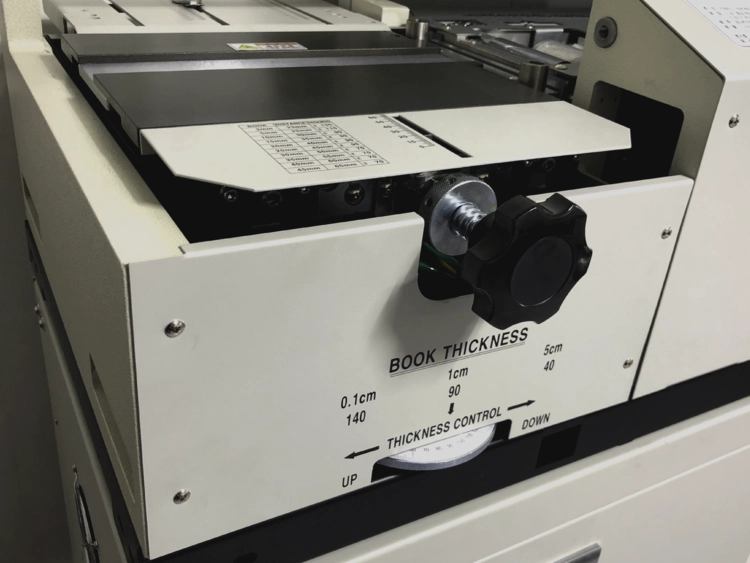

Book Thickness Control
Control the height of the book thickness,
if the cover is thick, turn to the right to adjust.
Turn it to the left to make the book angled,
and turn it to the right to make the book round.

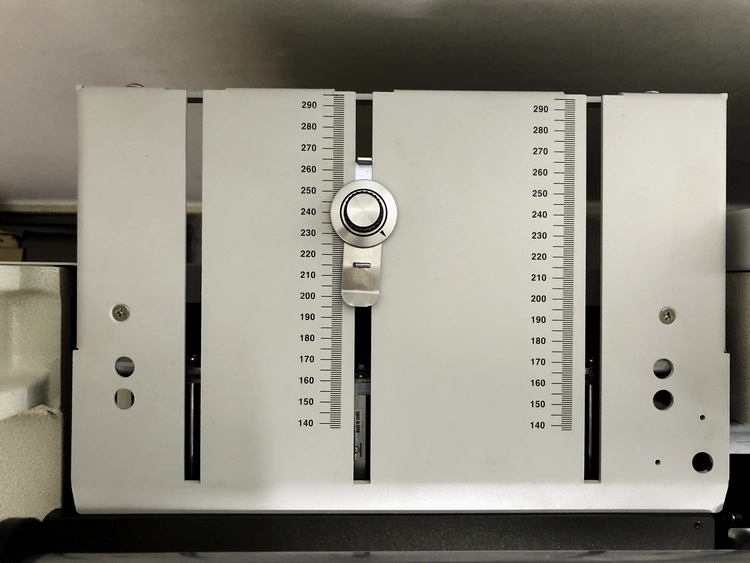

Cover & spine of book position control
You can easily adjust the position of the spine of book
by lifting the cover and adjusting the cover up and down.

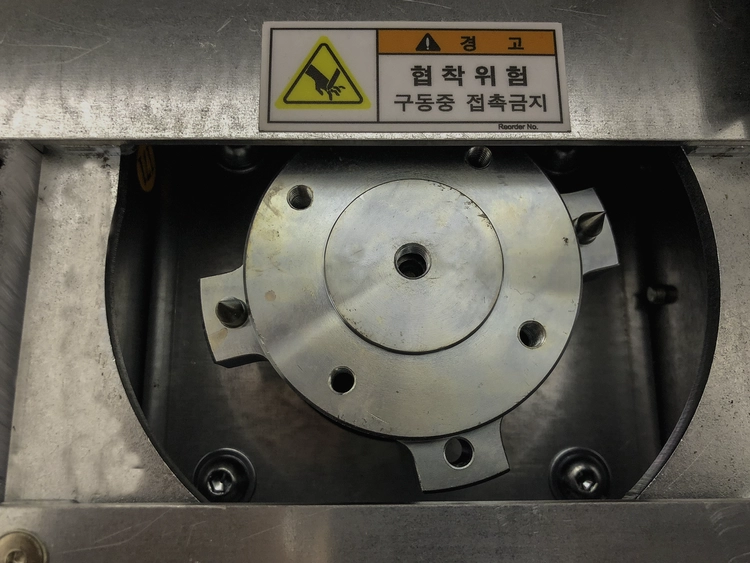

TC-5500S = Scraping / TC-5500S, SM = Milling+Scraping
A blade with a powerful motor scratched the bottom of the book.
The glue is firmly attached to the book,
so that the page of the book does not flare and
can be attached to the cover.
VACUUM
Vacuum sucks dust that after cutting spine of book,
and can drain to keep the binding machine and workplace clean.
